Fostex BK-20 Folded Horn Kit - Pair
Overview
Raw material prices for these flat packs is currently too high for us to offer them at a fair price. We will re-stock if/when lumber prices go down.
Fostex BK20 – 8” Full-Range High Efficiency Folded Horn Kit
Price shown is for a PAIR, and includes over a 10% discount on the drivers and parts

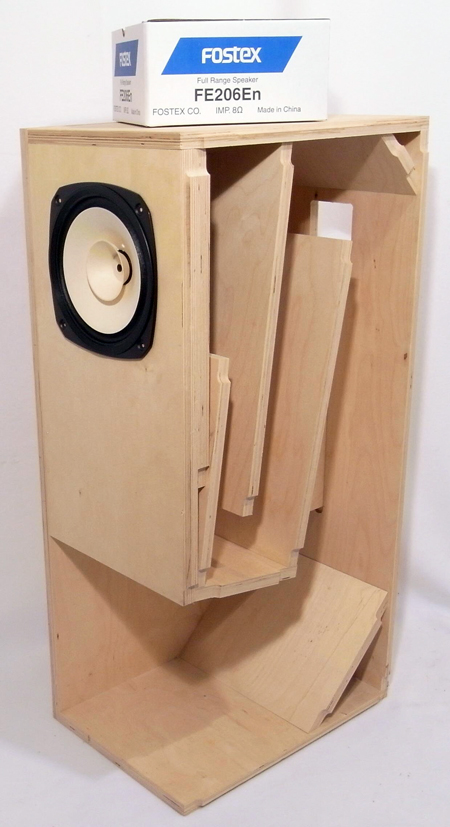

(Please note product picture displays the older FE206EN)
Madisound is pleased to bring you the BK20, a high efficiency single driver speaker kit. The Fostex FE206NV 8” Full-Range driver is combined with a Fostex designed folded horn enclosure. The driver is run full range without a crossover, with a very lifelike and engaging overall presentation. These speakers can be driven with very low powered amplifiers and effortlessly produce satisfying sound levels for all room sizes.
The FE206NV is the newest 8" full range in the long running Fostex line. This driver offers high sensitivity, large cone area, immediate midrange, and excellent high frequency reproduction.
The cabinets are locally cut by CNC machine from high quality multi-layer 11/16” Baltic Birch and delivered flat packed. The side walls have been grooved to make positioning and assembly incredibly easy. The front baffle is doubled up per the Fostex plans, and the through hole for the driver is chamfered to promote optimal air flow. Wood glue, clamps and a little sand paper are all that is required for assembly. No soldering or wood working required. Detailed assembly instructions are also included.
Completed cabinets measure 35” tall x 12-1/2” wide x 17” deep. The unfinished/unstained wood is ready for your choice of finish. You may also choose to round over the edges if you prefer that style of appearance. High quality internal hookup wire (Supra Classic 1.6) and damping material (Acousta-Stuf) and are included with the kit purchase. The rear of the cabinet is already cut for the TD-CUP dual binding post input cut. This allows for the easy addition of a super tweeter if desired. The Fostex T90A is our recommendation.
Nominal impedance ~ 8 ohms
Sensitiviy ~ 96db
F3 ~ 45 Hz
We also offer the BK12m 4.5" and BK16 6.5" Full-Range high efficiency folded horn speaker kits.
BK-20 Kit Includes:
- 2x Fostex FE206NV 8” Full Range Drivers
- 2x Unassembled and Unfinished Baltic Birch Cabinets (Assembled measurements 35” tall x 12-1/2” wide x 17” deep)
- 12 oz. Acousta-Stuf internal damping material (Dampen each driver chamber with this. Adjust to taste.)
- 5 ft. Supra Classic 1.6 15 AWG Internal speaker wire
- 4x QC205 Quick Connects (2 red, 2 black)
- 8x 8X1 Socket Head Wood Screws (8x Philips Head wood screws also included)
- 2x TD-CUP dual binding post input cups
- 8x 6X3/4 Oval Head Wood Screws (mount input cup to cabinet)
- Assembly Instructions
Tools Required for Assembly:
- Elmer’s Wood Glue
- Sand Paper
- Bar Clamps (3x 24", 2x 36" - the more the better. Available at your local hardware store, or online at mcmaster.com)

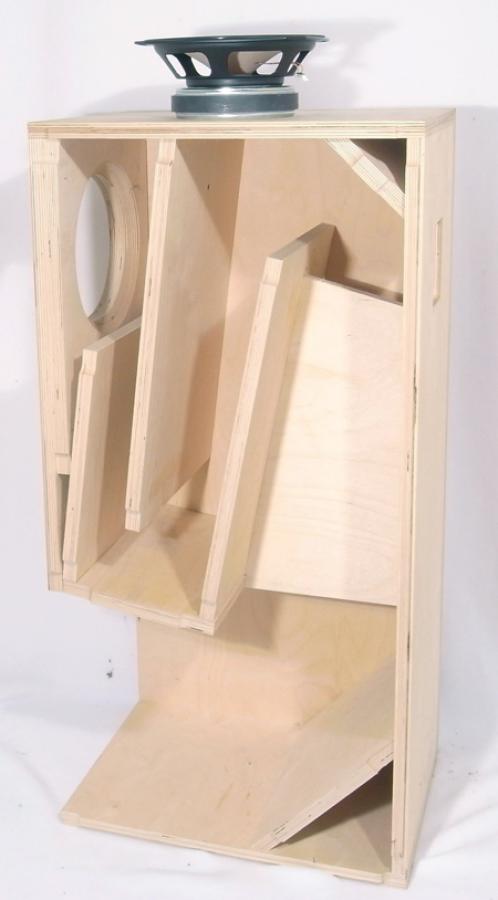

Closeup of Front Baffle Construction
Fun kit, sounds good
I built these and finished them with cherry veneer. It was a somewhat time-consuming process but went together as described.
I am powering them with a First Watt J2 and use a sub to round out the bottom end. They are fine without a sub, but I prefer it with a sub.
