Scanspeak 15W/8530K-00 5.5" Revelator Woofer - Low Qts

ScanSpeak 15W/8530K-00 5.5" Revelator Paper Cone Woofer - low Qts version- 148mm- 8 ohm

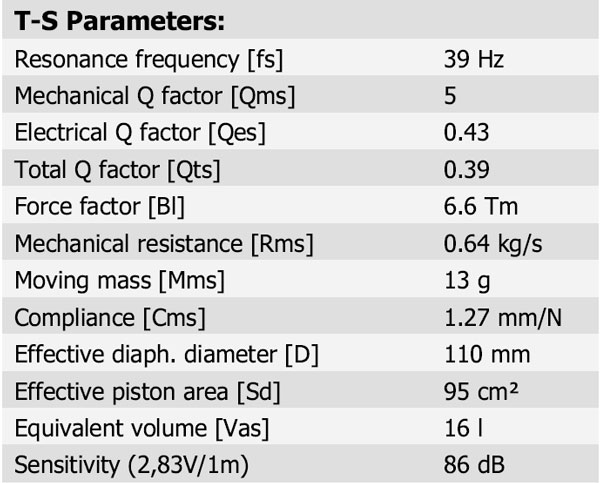

Spec Sheet PDF

The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.

The Revelator woofers and subwoofers feature very rigid cones in paper or aluminium that operate as a piston over a wide frequency range, in combination with Scan-Speak's low-loss linear suspension and the patented Symmetrical Drive (SD-1) results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.

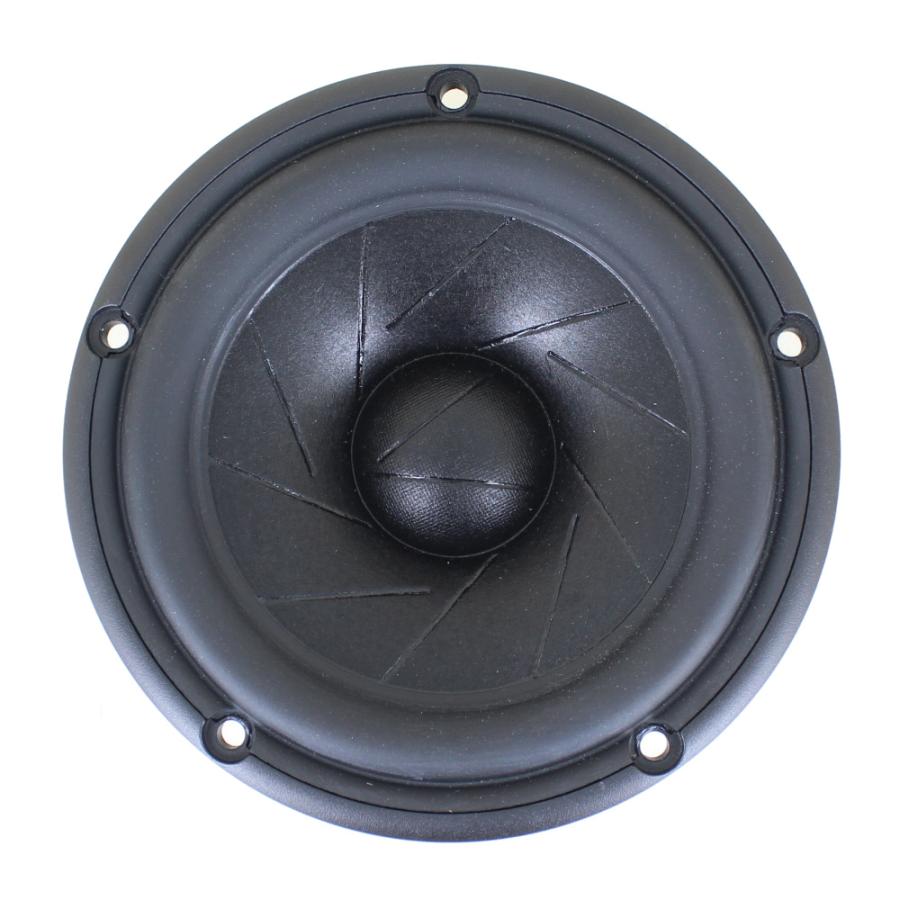

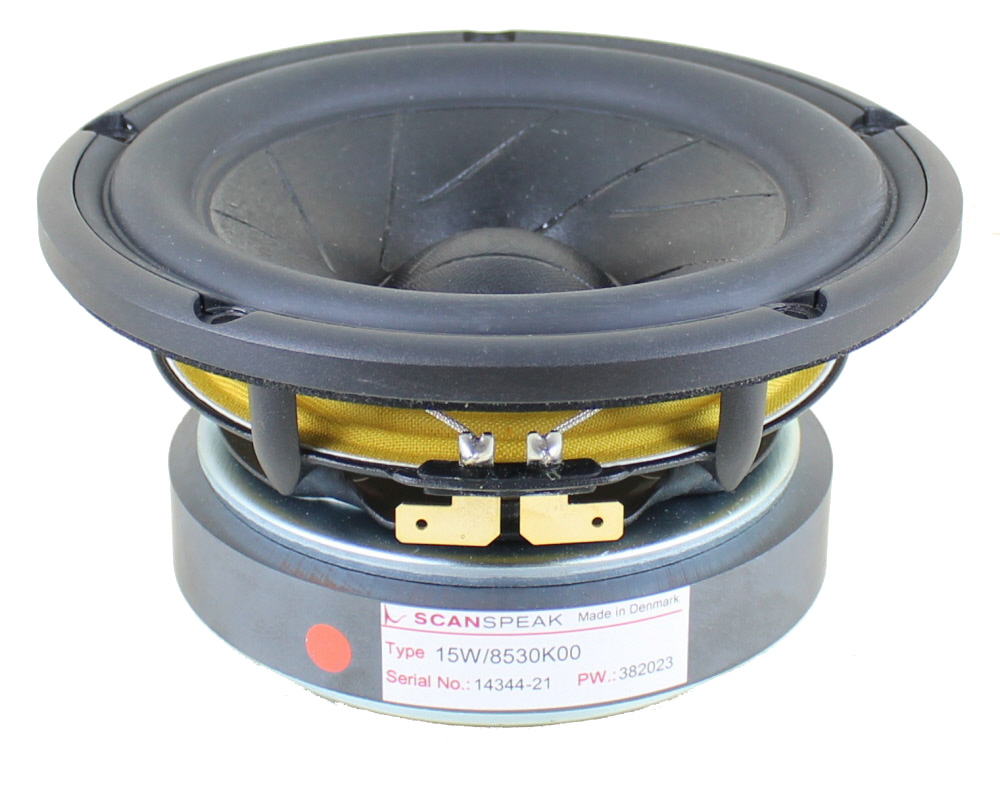

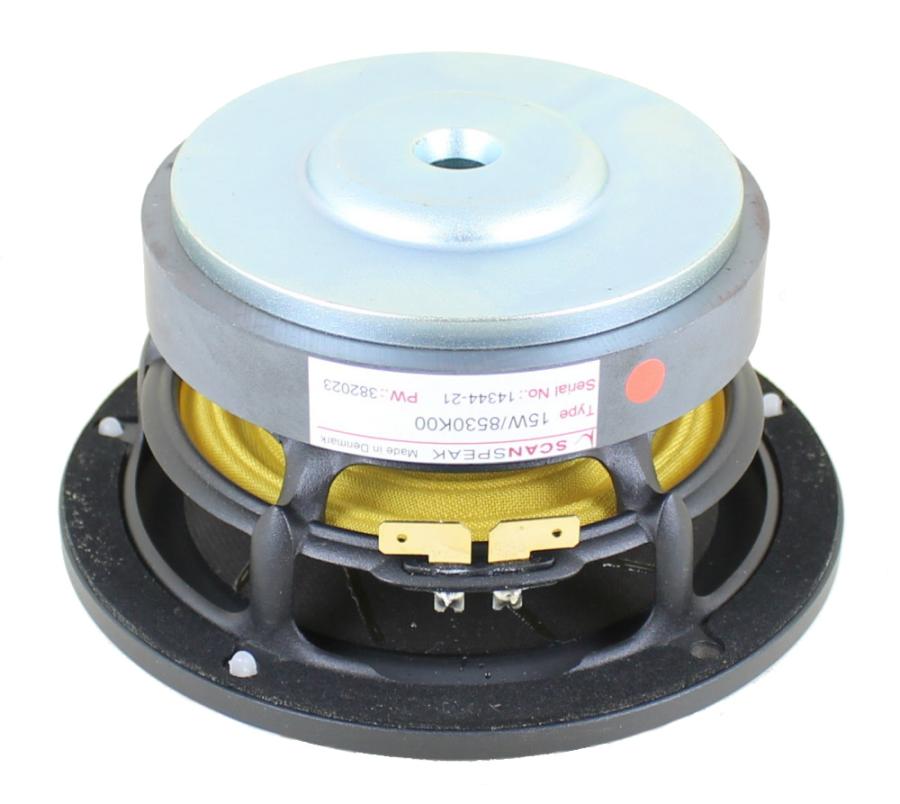

The 15W/8530K is a 5.5" Revelator mid/woofer. It features a non-resonant cone and dust cap structure, dynamic linear suspension, SD-1 magnet system, "Grasshopper" cast chassis with maximized air flow and resonance terminating mounting system. Less resonance in all structures, lower compression and higher linearity, faster termination of excess energy and higher sound pressure capability make the 15W have more musical and dynamic capability than any other 5 ½" we know of. Wonderful bass in a small box!

Passive crossover design for 15W8530K00 + D2905-9500

• Outside diameter: 148mm
• Cut out: 125mm
• Depth: 71mm
• 25.4mm = 1" = 2.54cm

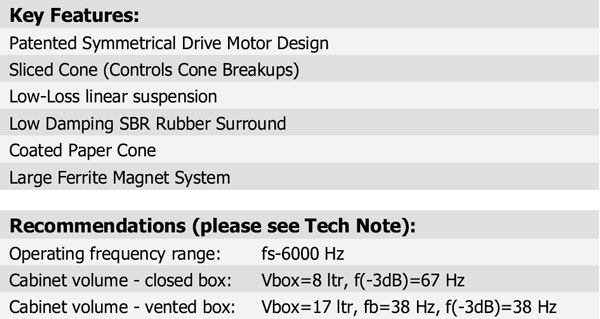

Box suggestions:

• 0.15 - .25 cubic foot sealed box with 20% filling for F3 of 84Hz, F6 of 62Hz, F10 of 44Hz
• 0.4 cubic foot box with 1.5" diameter vent by 6" long for F3 of 42Hz
• 0.5 cubic foot box with 2" diameter vent by 8" long for F3 of 40Hz
•
